포대포장기, 자동포장기, 자동적재기, 자동계량기, 주변설비, 미싱헤드, 소모품
미싱헤드  HOME >제품소개 >미싱헤드

DS-2 II

Specification
Model DS-2Ⅱ
MAX. Speed 1400rpm
Seam Duble thread chain stitch (Type 401)
Stitch Width 7~12mm
Needle DR x 2 #25
Thread 20/6, 20/9
Bag Material Paper, PP, Cotton, Jute
Oiling by hand, Oiler

DS-6A

Specification
Model DS-6AC DS-6HS / DS-6W
MAX. Speed 1400rpm 1800rpm
Seam Duble thread chain stitch (Type 401)
Stitch Width 7~10.5mm
Needle DR x 2 #25
Thread 20/6 , 20/9
Bag Material Paper, PP
Oiling by hand, Oiler

DS-7

Specification
Model DS-7A / DS-7C
MAX. Speed 1600rpm
Seam Duble thread chain stitch (Type 401)
Stitch Width 7.7mm (fixed)
Needle DN-H29 #26
Thread 20/6, 20/9
Bag Material Paper, PP
Oiling by hand, Oiler

DS-9

Specification
Model DS-9A/C, DS-9AW/CW
MAX. Speed 2500rpm
Seam Duble thread chain stitch (Type 401)
Stitch Width 7~10.5 mm
Needle DR-H30 #26
Thread 20/6, 20/9
Bag Material Paper, PP
Oiling Oil bath

DS-11

Specification
Model DS-11
MAX. Speed 2000rpm
Seam Duble thread chain stitch (Type 401)
Stitch Width 10.2 mm (fixed)
Needle DN-H29 #26
Thread 20/6, 20/9
Bag Material Paper, PP
Oiling Automatic, Oil pump, Oil bath

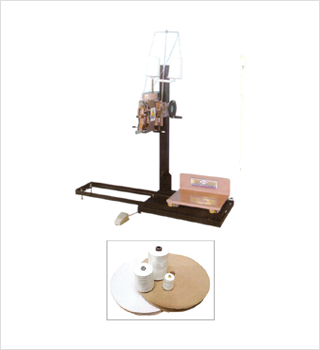

F-5

소형 포대 포장기.

백 크기에 따라 핸들로 상하 조절가능.

캐스터가 장착되어 이동이 용이.

바인더 장치로 CREPE-TAPE 사용가능.

Specification
Model F-5
미싱 DS-5Ⅱ
모터전원 단상, 220V
능력 150 ~ 250 bags/HR
바늘 DR x 2 #25, #26
땀수 7 ~ 12 mm
사절 수동식
